Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Pad lấp lỗ nhiệt linh hoạt cho pin và giải pháp bể nhiệt | Keywords: | Thermal Gap Filler |
|---|---|---|---|
| Hardness: | 30 Shore 00 | Màu sắc: | màu xám |
| Thermal conductivity& Compostion: | 6.5W/m-K | Specific Gravity: | 3.4g/cc |
| Thickness: | 0.012"(0.30mm)~0.200"(5.00mm) | Construction: | Ceramic filled silicone elastomer |
| Continuos Use Temp: | -45℃ to 200℃ | Application: | Battery And Heat Sink Solutions |
| Làm nổi bật: | Pad lấp lỗ nhiệt pin,Bộ đệm lấp lỗ nhiệt,Pad lấp lỗ nhiệt linh hoạt |
||

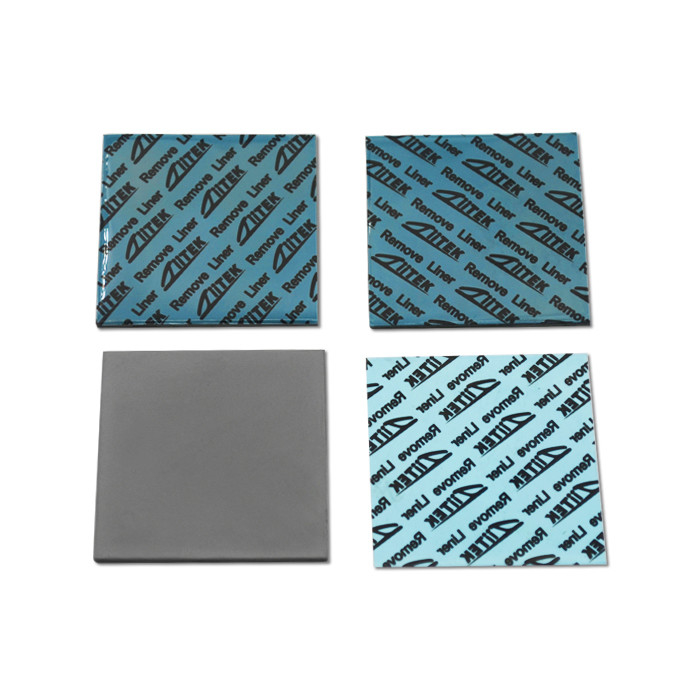

Self-Adhesive Thermal Gap Pad 0.3mm to 5.0mm Thick 6.0W/M·K Silicone Thermal Pad

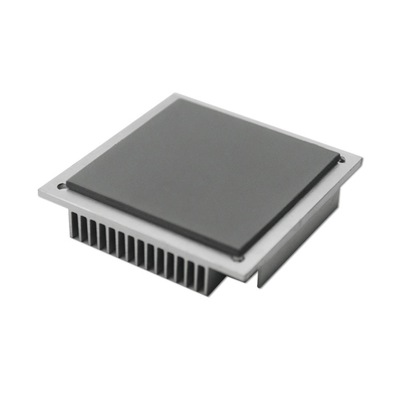

TS-TIF®100C 6530-11 series is a silicone-based thermal material designed to fill the gaps between heat-generating components and liquid cooling plates or metal bases. lts flexibility and elasticity make it ideal for covering highly uneven surfaces. With excellent thermal conductivity, it efficiently transfers heat from heat-generating elements or PCBs to liquid cooling plates or metal heat dissipation structures,thereby improving the cooling efficiency of high-power electronic components and extending the lifespan of the equipment.
Features:
> Excellent thermal conductivity 6.5W/mK
> Self-adhesive without the need for additional surface adhesive
> Naturally tacky needing no further adhesive coating
> UL recognized
> Easy release construction
> Electrically isolating
> High durability
Applications:
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| Typical Properties of TS-TIF®100C 6530-11 Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Specific Gravity | 3.4g/cc | ASTM D297 |
| thickness | 0.012"(0.30mm)~0.200"(5.00mm) | ASTM D374 |
| Hardness (thickness＜1.0mm) | 30 (Shore 00) | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 7.0MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X10¹²Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 6.5W/m-K | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
