| Products name: | Electrically Isolating Silicon Thermal Conductive Insulator 0.152mm Thermal Interface Material Manufacturer | Density: | 2.4 g/cc |
|---|---|---|---|
| Application: | GPU CPU Heatsink Cooling | Construction & Compostion: | Ceramic Filled Silicone Elastomer / fiberglass |
| Continuos Use Temp: | -60 to 180℃ | Thermal conductivity: | 1.3W/mK |
| Key words: | Thermally Conductive Insulator | Thickness range: | 0.006(inch）/ 0.152mm |
| Color: | Beige |

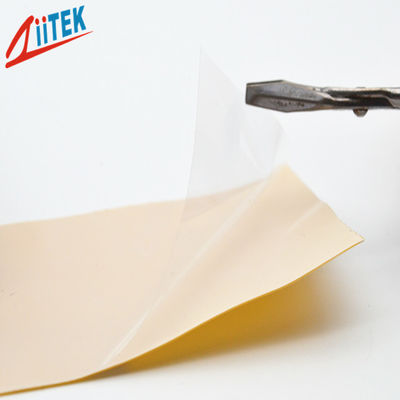

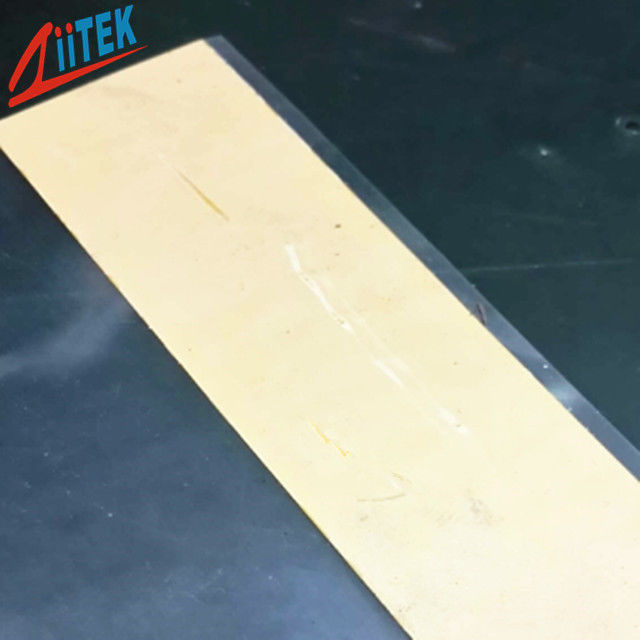

Electrically Isolating Silicon Thermal Conductive Insulator 0.152mm Thermal Interface Material Manufacturer
The TIS®806K-13-08 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.
Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
> Easy release construction
> Electrically isolating
> High durability
Applications:
> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
| Typical Properties of TIS®806K-13-08 Series | ||
| Property | Value | Test Method |
| Color | Beige | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer /Polyimide film | ****** |
| Thickness range | 0.006inch (0.152mm) | ASTM D374 |
| Tensile Strength(MPa) | 34 | ASTM D412 |
| Density | 2.4 g/cc | ASTM D297 |
| Continuos Use Temp | -60 to 180℃ | ****** |
| Breakdown Voltage(V/mm) | 6000 | ASTM D149 |
| Dielectric Constant @ 1MHz | 3.7 | ASTM D150 |
| Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | UL(E331100) |
| Thermal conductivity | 1.3W/m-K | ASTM D5470 |
| Thermal impedance(℃-in²/W)@30psi |
0.46 |
ASTM D5470 |
Standard Thicknesses
0.006inch (0.152mm)
Standard Sizes
12" x 160"(304mm x 48.76M)
The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.
Packaging Details & Lead time
The packaging of silicone insulation materials
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
