Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Chất lượng cao Tấm đệm silicon nhiệt cách nhiệt cao cấp Chất làm đầy khoảng cách làm mát cho chất bá | Từ khóa: | Bàn đệm silicone nhiệt |
|---|---|---|---|
| Độ dày: | 0,020"(0,5mm)~0,200"(5,0mm) | Vật mẫu: | Mẫu miễn phí |
| Độ dẫn nhiệt: | 1,5W/mK | Nhiệt độ sử dụng liên tục: | -45 đến 200oC |
| Màu sắc: | Trắng | Độ cứng: | 45 Bờ 00 |
| Ứng dụng: | Chất bán dẫn, Thiết bị y tế, Máy căn chỉnh mặt nạ |

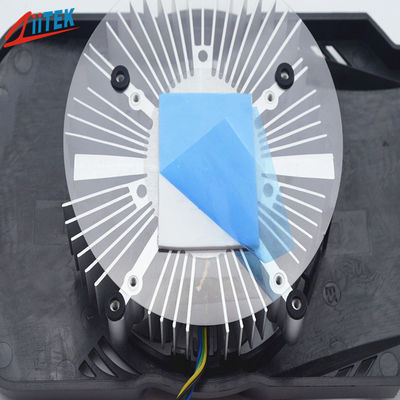

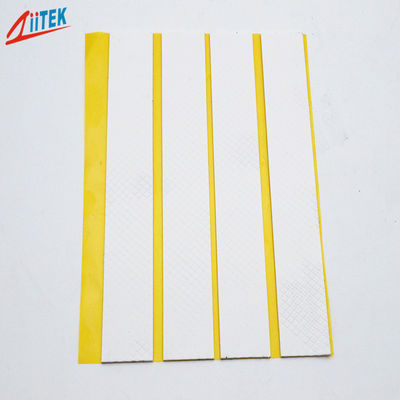

High Quality High Conductive Insulation Thermal Silicone Pad Cooling Gap Filler For Semiconductor, Medical Equipment, Mask Aligner
The TIF®100-06S Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| Typical Properties of TIF®100-06S Series | |||
| Property | Value | Test method | |
| Color | White | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | 0.020"(0.5mm)~0.200"(0.50mm) | ASTM D374 | |
| Specific Gravity | 2.3g/cc | ASTM D297 | |
| Hardness | 45 Shore 00 | ASTM 2240 | |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Outgassing(TML) | 0.35% | ASTM E595 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
