Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Gel tản nhiệt tốt Gel silicon dẫn nhiệt Khoảng cách nhiệt Gel cho ngành viễn thông | Từ khóa: | Gel dẫn điện nhiệt |
|---|---|---|---|
| Trọng lượng riêng: | 3,25g/cc | Hằng số dielectric @ 1MHz: | 7,7 |
| dẫn nhiệt tốt: | 5.0W/mK | Đánh giá ngọn lửa: | UL 94 V-0 |
| Điện áp đánh thủng (V/mm): | ≥6000 | Màu sắc: | Màu xám đen |
| Ứng dụng: | Ngành Công nghiệp Viễn thông |

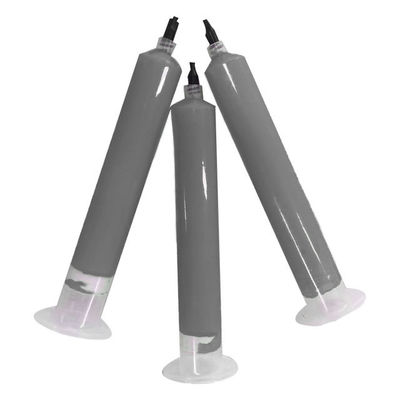

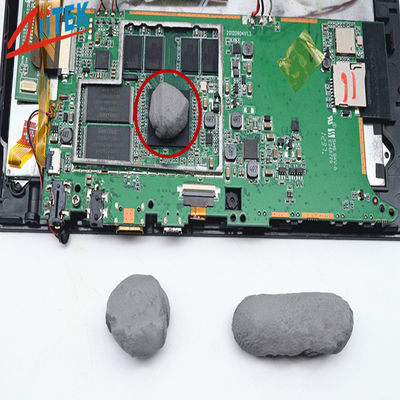

Good Heat Dissipation Thermal Conductive Silicone Gel Thermal Gap Filler Gel For Telecom Industry
Company Profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Products Description
Ziitek TIF®050-11-1 is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®050-11-1 is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Feature
> Thermal conductivity: 5.0 W/mK
> Low stress, protect sensitive components.
> Strong plasticity. good stability
> Superior dielectric properties
Application
> Power module
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic laboratory equipment
| TIF®050-11-1 Typical Properties | ||
| Property | Value | Test method |
| Color | Dark Gray | Visual |
| Construction & Composition | Ceramic filled silicon material | - |
| Density(g/cm³) | 3.25g/c | ASTM D792 |
| Thermal conductivity | 5.0W/mK | ASTM D5470 |
| Breakdown Voltage (V/mm) | ≥6000 | ASTM D149 |
| Dielectric constant @1MHz | 7.7 | ADTM D150 |
| Flame Rating | V-0 | UL 94 |
| Volume resistivity(Ohm.cm) | 8.0 X 1013 | ASTM D257 |
Product Specification
30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
Custom packaging available for automation use. Please contact us for confirming.
If you want to know our thermal products, please visit our website.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q:Is there promotion price for big buyer?
A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.
Người liên hệ: Dana Dai
Tel: 18153789196
