Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Vật liệu tạo bọt silicone đen chịu nhiệt độ cao cho thiết bị liên lạc | Màu sắc: | Đen |
|---|---|---|---|
| Mật độ (g/cm³): | 0,27 | Bộ nén @100oC(%): | ＜3.0 |
| Cấu trúc & Thành phần: | Cao su silicon | Độ bền kéo (MPA): | ≥0,3 |
| Từ khóa: | Chất liệu tạo bọt silicone | Ứng dụng: | Thiết bị truyền thông |

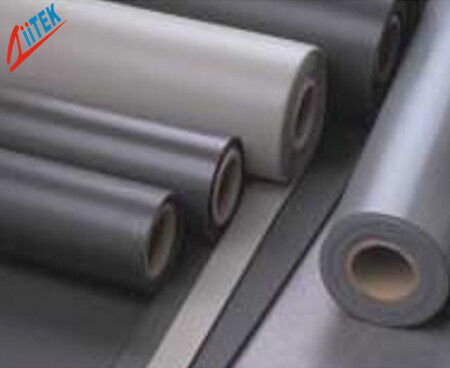

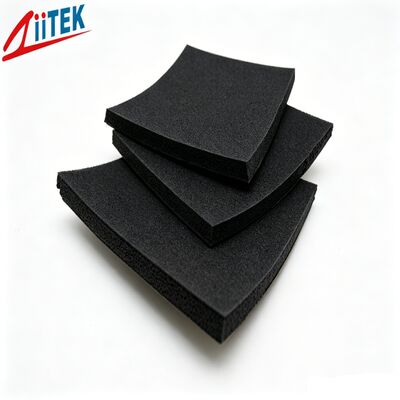

High-Temperature Resistant Black Silicone Foaming Material For Communication Equipment
Z-Foam®800-01EC Series foamed silicone is a foam material formed by the foaming of polysiloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weatherability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance,creep resistance,flame retardancy,and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing,vibration damping,cushioning, sound insulation, protection, insulation, fireproofing, and noise absorption.
Features
>Resistant to mechanical fatigue
>Resistant to ozone and ultraviolet rays
>High oxygen index, low smoke,low toxicity
>Excellent performance under extreme temperatures
>Excellent resistance to compression set and creep
Application
>Communication Equipment
>Smart Devices
>Cables and Optical Fibers
>Airplanes, High-Speed Trains,Automobiles
>Telecommunication and Electrical Cabinets
| Typical Properties of Z-Foam®800-01EC Series | ||
| Properties | Value | Test method |
| Color | Black | Visual |
| Structure & Component | Silicone rubber | ****** |
| Density (g/cm3) | 0.27 | ASTM D1056 |
| Compression Set @100℃(%)) | ＜3.0 | ASTM D1056 |
| Tensile Strength (MPa) | ≥0.3 | ASTM D412 |
| Elongation At Break (%) | ≥90 | ASTM D570 |
| Water Absorption (%) | ≤5.0 | ASTM D412 |
| Breakdown Voltage (kV/mm) | ≥2.0 | ASTM D149 |
| Volume Resistivity (Ω·cm) | ≥1.0 x 1015 | ASTM D257 |
| Temperature Range (℃)) | -55~200 | ****** |
| Flame Rating | V-0 | UL94 (E331100) |
Standard Sheet Size:23" x 60"(584mm x 1524mm)

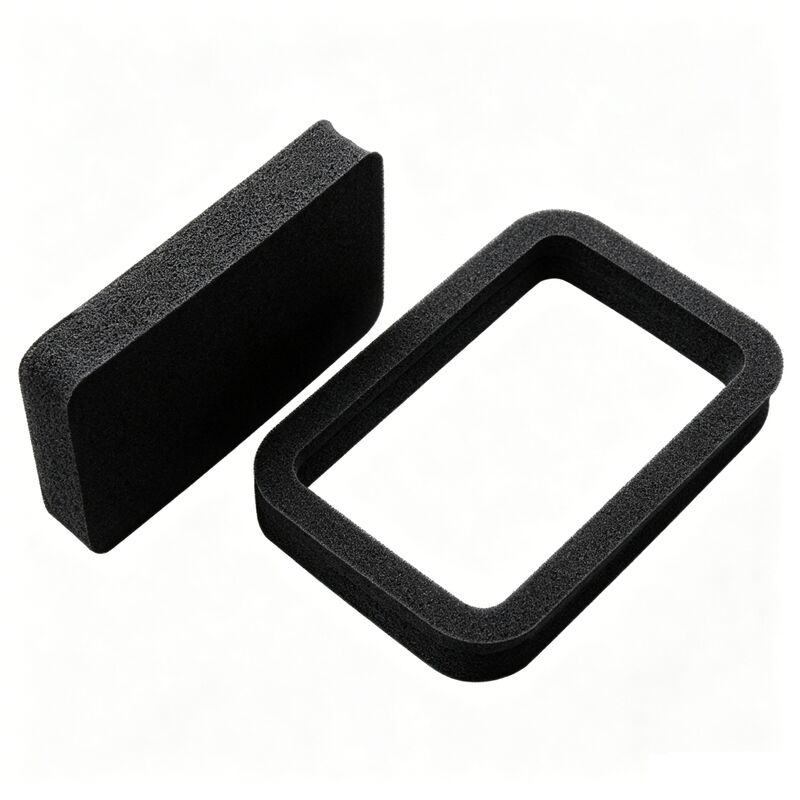

Z-Foam® Series can be die-cut into different shapes provided.
For More different thickness,please contact us.
Company profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
