| Tên sản phẩm: | Tấm tản nhiệt silicon 6,5W/MK được chứng nhận RoHS Tấm làm mát bằng silicon tự dính cho máy tính xác | độ cứng: | 65/20 Bờ 00 |
|---|---|---|---|
| Từ khóa: | Tấm làm mát silicon | Độ dẫn nhiệt: | 6,5W/mk |
| Màu sắc: | Màu xám đậm | Nhiệt độ sử dụng liên tục: | -40 đến 200℃ |
| Vật mẫu: | Mẫu miễn phí | độ dày: | 0,010 "(0,25mm) ~ 0,200" (5,0mm) |
| Ứng dụng: | Máy tính xách tay PC | ||
| Làm nổi bật: | RoHS certified thermal pads,self-adhesive silicone cooling pad,6.5W/M.K PC laptop thermal pad |
||

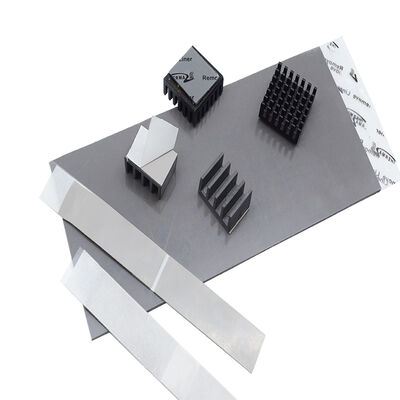

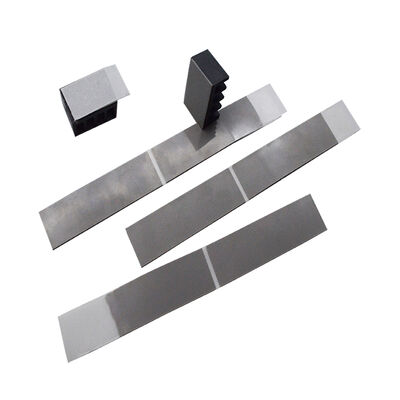

RoHS Certified 6.5W/M.K Thermal Pads Silicone Cooling Pad With Self-Adhesive For PC Laptop
The TIF®500-65-11US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress.This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.
Features
> High thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> Power Electronics
> Automotive Electronics
> Consumer Electronics
> Industrial Control
> New Energy
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®500-65-11US Series | |||
| Property | Value | Test method | |
| Color | Dark gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.45 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥ 5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 6.5 | ASTM D5470 | |
| 6.5 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
