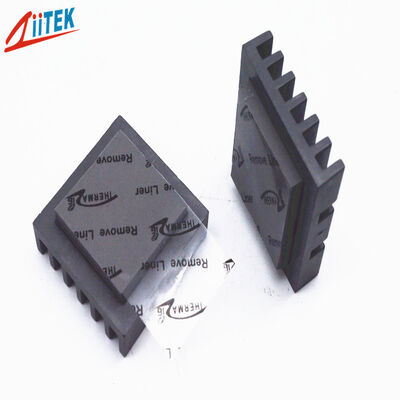

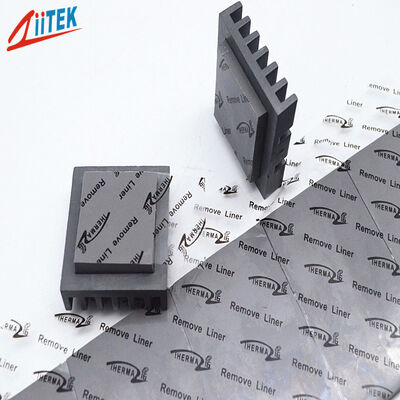

Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm cùng loại: | Tấm dẫn nhiệt được thiết kế để tản nhiệt và cách điện cho các linh kiện điện tử công suất cao | Xếp hạng lửa: | UL 94 V-0 |
|---|---|---|---|
| Từ khóa: | Pad dẫn nhiệt | Độ dẫn nhiệt: | 1,5W/mK |
| Điện áp phân hủy (V/mm): | ≥5500 | Hằng số dielectric @ 1MHz: | 4.5 |
| Xây dựng & Phân bón: | Chất đàn hồi silicon chứa đầy gốm | Nhiệt độ sử dụng liên tục: | -40 đến 200℃ |
| Ứng dụng: | Linh kiện điện tử công suất cao | Vật mẫu: | miễn phí |

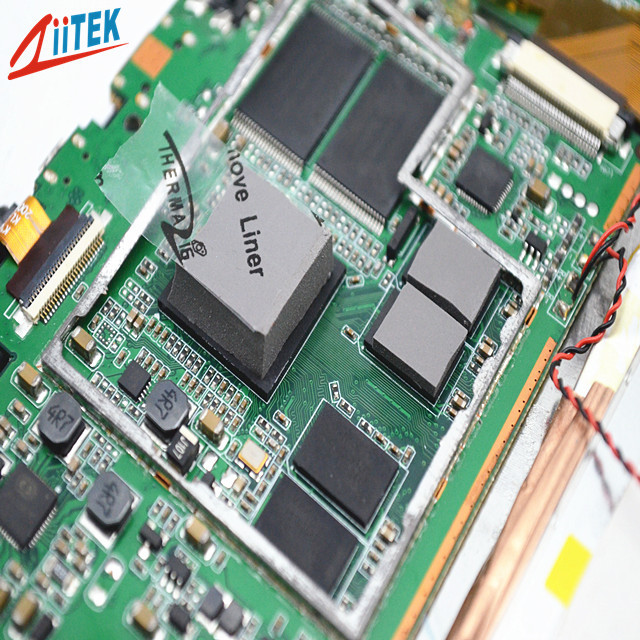

The TIF® 100-11S Series is a well-balanced, general-purpose thermal pad offering good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. Standard Thickness: 0.010" (0.25 mm) – 0.200" (5.00 mm) with increments of 0.010" (0.25 mm) Standard Size: 16"×16" (406 mm × 406 mm) Reinforcement Fabric: FG (Fiberglass) Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening) Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive) The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us. Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Our thermal conductive materials are widely used in new energy, electronic appliances, transportation, industry, healthcare, communication, and other fields. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, demonstrating our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability. Factory Size: 8,000–10,000 square meters Factory Location: No.12, Xiju Road, Hengli Township, Dongguan City, Guangdong Province, P.R.China Online Service: 12 hours, with fastest inquiry reply times Working Hours: 8:00am - 5:30pm, Monday to Saturday (UTC+8) Staff: Well-trained and experienced English-speaking team Packaging: Standard export carton or customized with customer information Samples: Free samples provided Even though our products undergo strict inspection, if you encounter any issues with parts not working properly, please provide proof and we will help resolve the situation with a satisfactory solution. Quality: Do it right the first time, total quality control Effectiveness: Work precisely and thoroughly for effectiveness Service: Quick response, on-time delivery, and excellent service Teamwork: Complete teamwork across sales, marketing, engineering, R&D, manufacturing, and logistics teams to provide satisfying service for customersThermal Conductive Pad Designed to Provide Heat Dissipation and Electrical Insulation for High Power Electronic Components
Product Overview
Key Features
Applications
Typical Properties of TIF® 100-10S Series
Property
Value
Test Method
Color
Dark Gray
Visual
Construction & Composition
Ceramic filled silicone elastomer
******
Density (g/cm³)
2.3
ASTM D792
Thickness Range (inch/mm)
0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00ASTM D374
Hardness
65 Shore 00 | 45 Shore 00
ASTM 2240
Continuous Use Temp
-40 to 200℃
******
Breakdown Voltage (V/mm)
≥ 5500
ASTM D149
Dielectric Constant
4.5 MHz
ASTM D150
Volume Resistivity
≥1.0×10¹² Ohm-meter
ASTM D257
Thermal Conductivity (W/m-K)
1.5
ASTM D5470
ISO22007
Fire Rating
V-0
UL 94 (E331100)
Product Specifications
