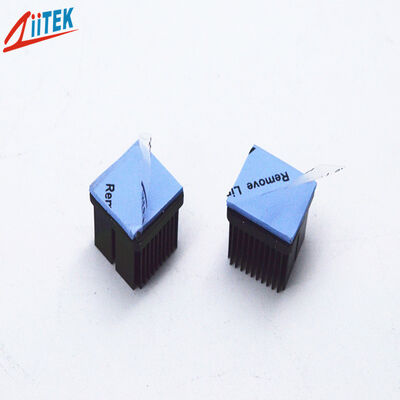

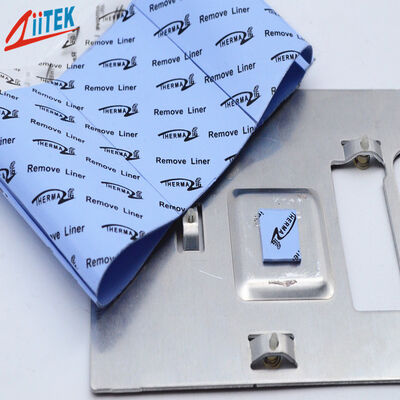

2.0W/mK Blue Thermal Conductive Pad Flexible Compressible Silicone For Low Stress Applications In Electronic Heat Dissipation Systems

Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste, thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel, silicone foam, silicone-free thermal pads etc. We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.

TIF^®100-20-05E Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

• Good thermal conductive: 2.0W/mK
• Moldability for complex parts
• Soft and compressible for low stress applications
• Broad range of hardnesses available
• Outstanding thermal performance
• High tack surface reduces contact resistance

• Power tools
• Network communication products
• Electric vehicle batteries
• Computer CPU/GPU Cooling
• New energy vehicle power systems
• Heat pipe thermal solutions
• Memory Modules
• Mass storage devices
• Automotive electronics
• Set top boxes

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"X16" (406 mmX406 mm)

Reinforcement Fabric: FG (Fiberglass)

Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF^® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

• Our value message is "Do it right the First time, total quality control"
• Our core competencies is thermal conductive interface materials
• Competitive advantage products
• Confidentiality agreement Business Secret Contract
• Free sample offer
• Quality assurance contract

A: All the data in the sheet are actual tested. Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

A: It depends on the watts of power source, ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

A: Yes, welcome to custom orders. Our custom elements including dimension, shape, color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order, please kindly offer a drawing or leave your custom order information.
