| Products name: | LTD Thermal Pad Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads For CPU | Thermal conductivity& Compostion: | 8.5W/m-K |
|---|---|---|---|
| Thickness: | 2.5mmT | Construction: | Ceramic filled silicone elastomer |
| Keywords: | LTD Thermal Pad | Specific Gravity: | 3.2g/cc |
| Color: | Gray | Continuos Use Temp: | -45℃ to 200℃ |
| Hardness: | 20 Shore 00 | Application: | LED,CPU,Display card,Mainboard/mother board |

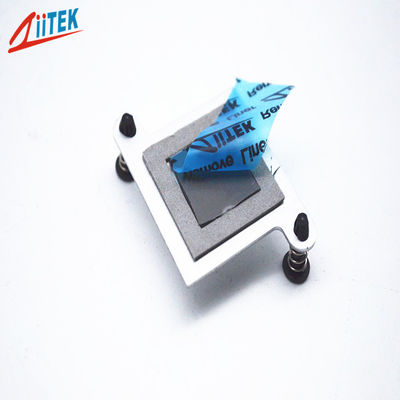

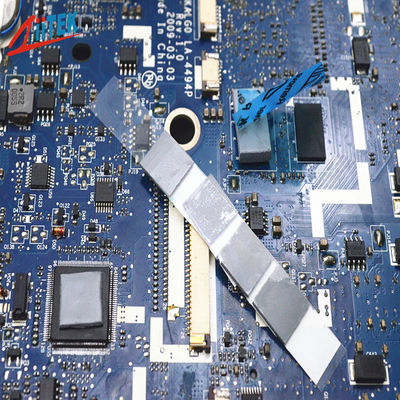

LTD Thermal Pad Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads For CPU
The TIF7100RUS is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF7100RUS an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features:
> Good thermal conductive:8.5W/MK
> Soft and compressible for low stress applications
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Heat pipe thermal solutions
> Set top boxes
> Audio and video components
> Monitoring the Power Box
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
| Typical Properties of TIF7100RUS Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Specific Gravity | 3.2g/cc | ASTM D297 |
| thickness | 2.5mmT | ASTM D374 |
| Hardness (thickness＜1.0mm) | 20 (Shore 00) | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ****** |
| Dielectric Breakdown Voltage | >3500 VAC | ASTM D149 |
| Dielectric Constant | 5.1~6.1MHz | ASTM D150 |
| Volume Resistivity | 1.0X10¹²Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 8.5W/m-K | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
