Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Products name: | Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics | Continuos Use Temp: | -40℃ to 160℃ |
|---|---|---|---|
| Density: | 2.2g/cc | Keywords: | Thermal Pads |
| Hardness: | 60±5 Shore C | Color: | Gray/Light amber |
| Thermal conductivity& Compostion: | 1.2W/m-K | Thickness: | 0.012inch / 0.3mm |
| Construction: | Ceramic filled silicone elastomer | Application: | Electronics cooling |

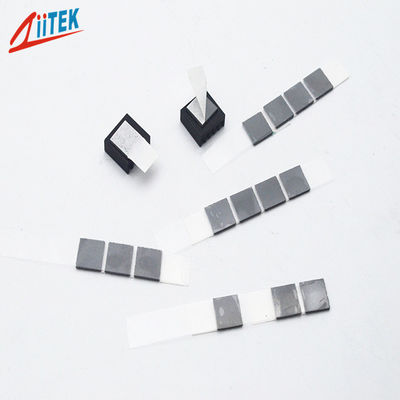

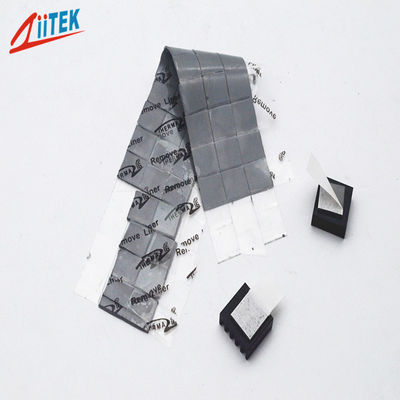

Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics
Product description
TIF112-12-10S-K1 use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
> Excellent thermal conductivity: 1.2W/mK
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Easy release construction
> Electrically isolating
> High durability
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
| Typical Properties of TIF112-12-10S-K1 Series | ||
| Property | Value | Test method |
| Color | Gray/Light amber | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Renforcement Carrier | Polyimide film | ***** |
| Thickness range |
0.012inch / 0.30mm |
ASTM D374 |
| Specific Gravity | 2.2 g/cc | ASTM D297 |
| Hardness | 60 ±5 Shore C | ASTM 2240 |
| Continuos Use Temp | -40 to 120℃ | ***** |
| Dielectric Breakdown Voltage(T-1.0mm) | >5500 VAC | ASTM D149 |
| Dielectric Constant @ 1MHz | 4.5 | ASTM D150 |
| Volume Resistivity | 1.0x1012 Ohm-meter | ASTM D257 |
| Flame rating | 94-V0 | UL E331100 |
| Thermal conductivity | 1.2 W/m-K | ASTM D5470 |
Product Specification
Product Thicknesses: 0.012inch / 0.30mm
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming.
Safe disposal method does not require special protection.The storage condition is low temperature and dry,
away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
