Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Giá nhà máy bán nóng Nhiệt độ dẫn điện silicon pad1,5w 0,5 ~ 5,0mm dày khoảng trống khoảng trống cho | Độ cứng: | 60 bờ 00 |
|---|---|---|---|
| Ứng dụng: | Ắc quy & nguồn điện ô tô | Độ dày: | 0,020"(0,5mm)~0,200"(5,0mm) |
| Độ dẫn nhiệt: | 1,5W/mK | Nhiệt độ sử dụng liên tục: | -45 đến 200oC |
| Màu sắc: | Xám | Từ khóa: | tấm đệm khe hở nhiệt |
| Vật mẫu: | Mẫu miễn phí |

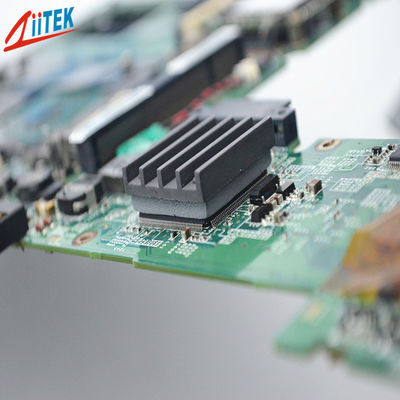

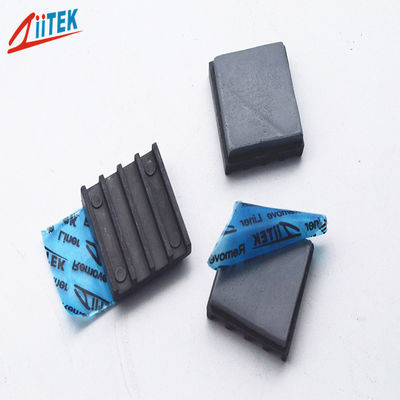

Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery
The TIF®100-02F Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®100-02F is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> Easy release construction
> Electrically isolating
> High durability
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Power supply
> Heat pipe thermal solutions
> Memory Modules
| Typical Properties of TIF®100-02F Series | |||
| Property | Value | Test method | |
| Color | Gray | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | 0.020"(0.5mm)~0.200"(0.50mm) | ASTM D374 | |
| Specific Gravity | 2.3g/cc | ASTM D297 | |
| Hardness | 60 Shore 00 | ASTM 2240 | |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 4.0 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Outgassing(TML) | 0.35% | ASTM E595 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
