Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | CPU GPU SSD IC LED Tản Nhiệt Hiệu Quả Siêu Mềm 3.0 W/MK 0.25 Mm ~ 0.5 Mm Độ Dày Silicon Truyền Nhiệt | Màu sắc: | Xám |
|---|---|---|---|
| Từ khóa: | Bộ đệm nhiệt chuyển nhiệt | Độ dẫn nhiệt: | 3.0 W/m-K |
| Mật độ (g/cm³): | 3.1 | Hằng số dielectric @ 1MHz: | 4.0 |
| độ cứng: | 20 SHORE00 | Ứng dụng: | CPU GPU SSD IC tản nhiệt LED |

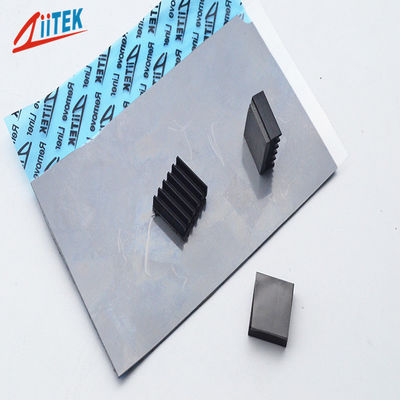

CPU GPU SSD IC LED Cooler Efficient Ultra-Soft 3.0 W/MK 0.25mm~0.5mm Thickness Silicone Heat Transfer Thermal Pad
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
The TIF®300US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies,such as large tolerances,uneven surfaces,and the susceptibility of delicate components to mechanical damage.
Features:
> Good thermal conductivity: 3.0W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> Power tools
> Network communication products
> Electric vehicle batteries

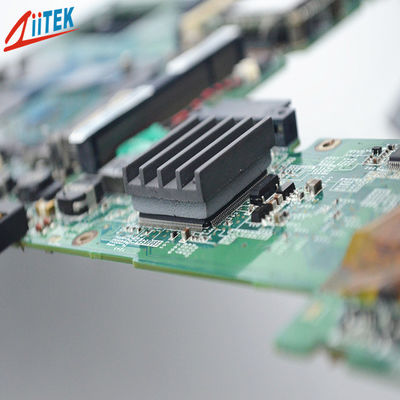

> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®300US Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.1 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.010~0.020 (0.25~0.50) |
0.030~0.200 (0.75~5.0) | ASTM D374 |
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 | |
|
3.0 W/m-K |
ISO22007 | ||
Product Specifications
Standard Thickness: 0.010"(0.25 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
