Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Tấm cách nhiệt silicone làm đầy khoảng cách làm mát Tấm cách nhiệt hấp thụ nhiệt | Hằng số dielectric @ 1MHz: | 4.5 |
|---|---|---|---|
| vật mẫu: | Mẫu miễn phí | Nhiệt độ sử dụng liên tục: | -40 đến 200℃ |
| độ cứng: | 65/35 Bờ 00 | Đánh giá ngọn lửa: | UL 94 V-0 |
| Ứng dụng: | Điện, Laptop, Tản Nhiệt, CPU GPU LED Cooler | Độ dẫn nhiệt（w/mk）: | 1,8W/mK |
| Xây dựng & Phân bón: | Chất đàn hồi silicon chứa đầy gốm | Từ khóa: | Tấm làm mát khe hở nhiệt |

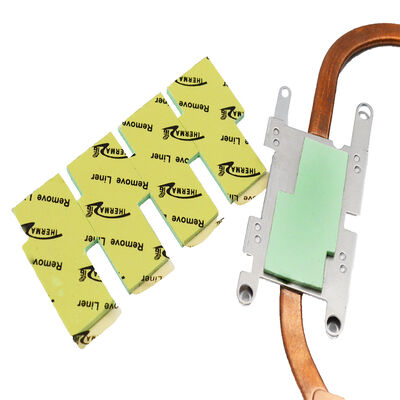

Electric Thermal Silicone Gap Filling Cooling Pad Thermal Absorbing Conductive Insulating Pad
Products description
The TIF®100-18-56E Series is a well-balanced,general-purpose thermal pad.It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.
Features:
> Good thermal conductive :1.8W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance
Applications:
> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures
> CPU
> Display card
> Mainboard/mother board
> Notebook
| Typical Properties of TIF®100-18-56E Series | |||
| Property | Value | Test method | |
| Color | Green | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.3 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 1.8 W/m-K | ASTM D5470 | |
| 1.8 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
