Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Vật liệu giao diện nhiệt thân thiện với môi trường Tấm nhiệt giao diện có khả năng nén cao để tản nh | Xây dựng & Phân bón: | Chất đàn hồi silicon chứa đầy gốm |
|---|---|---|---|
| Hằng số dielectric @ 1MHz: | 6.0 | Từ khóa: | Tấm nhiệt |
| vật mẫu: | Mẫu miễn phí | Nhiệt độ sử dụng liên tục: | -40 đến 200℃ |
| Độ dẫn nhiệt（w/mk）: | 5.0W/mK | độ cứng: | 65/35 Bờ 00 |
| Đánh giá ngọn lửa: | UL 94 V-0 | Ứng dụng: | nguồn cung cấp điện cho màn hình LED |

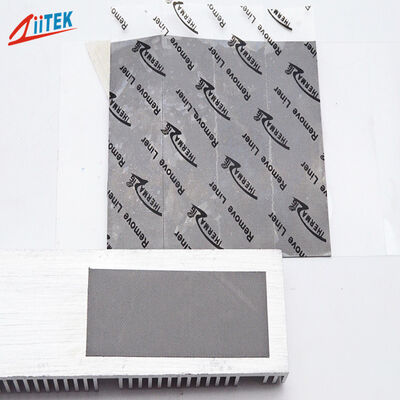

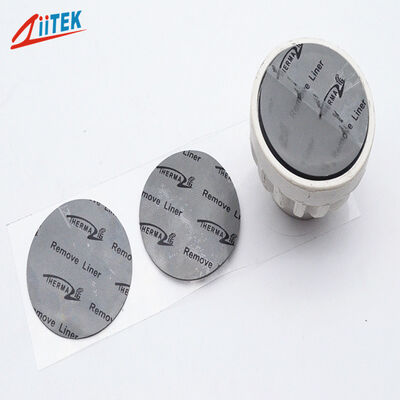

Eco-Friendly Thermal Interface Material Highly Compressible Thermal Interface Thermal Pad For Dissipate Heat Of LED Display Power Supply
Products description
The TIF®100-50-11E Series is awell-balanced,general-purpose thermal pad.It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
Features:
> High thermal conductive :5.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance
> RoHS compliant
> UL recognized
Applications:
> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures
> Display card
> Mainboard/mother board
> Notebook
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®100-50-11E Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @1MHz | 6.0 | ASTM D150 | |
| Volume Resistivity(Ohm-meter) | ＞1.0X1012 | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity (W/m-K) | 5.0 | ASTM D5470 | |
| 5.0 | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
