| Products name: | Insulation 8W/M-K 1.0mm Gap Filler Silicone Pad Thermal Conductive Silicone Pad For CPU GPU EV Battery | Hardness: | 45±5 Shore 00 |
|---|---|---|---|
| Construction: | Ceramic filled silicone elastomer | Thermal conductivity& Compostion: | 8.0 W/m-K |
| Specific Gravity: | 3.5g/cc | Thickness: | 1.0mmT |
| Color: | Gray | Continuos Use Temp: | -45℃ to 200℃ |
| Keywords: | Thermal Conductive Silicone Pad | ||
| Làm nổi bật: | 1.0mm thermal conductive silicone pad,CPU GPU thermal pad with warranty,EV battery thermal conductive silicone |
||

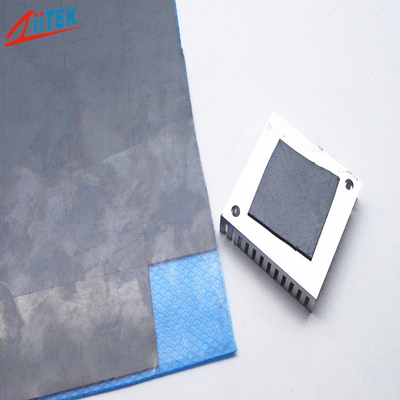

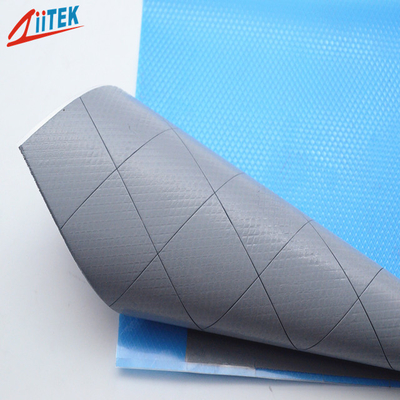

Insulation 8W/M-K 1.0mm Gap Filler Silicone Pad Thermal Conductive Silicone Pad For CPU GPU EV Battery
The TIF740HQ use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features:
> Good thermal conductive:8.0W/MK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
| Typical Properties of TIF740QE Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Specific Gravity | 3.5g/cc | ASTM D297 |
| thickness | 1.0mmT | ASTM D374 |
| Hardness (thickness＜1.0mm) | 55±5 (Shore 00) | ASTM 2240 |
| Hardness (thickness≥ 1.0mm) | 45±5 (Shore 00) | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 5.0MHz | ASTM D150 |
| Volume Resistivity | 1.0X10¹²Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 8.0W/m-K | ASTM D5470 |
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection. The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
