Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | 1,2w/mk pad nhiệt đa kích thước silicon pad nhiệt độ cao CPU đồ họa CPU Tổ biến nhiệt | Từ khóa: | Tấm nhiệt |
|---|---|---|---|
| Độ dẫn nhiệt: | 1,2w/mk | Độ dày: | 0,020"(0,5mm)~0,200"(5,0mm) |
| Độ cứng: | 12±5 Bờ 00 | Màu sắc: | Màu xanh da trời |
| Vật mẫu: | Mẫu miễn phí | Trọng lượng riêng: | 2.0g/cc |
| Ứng dụng: | CPU Đồ họa Tản biến nhiệt |

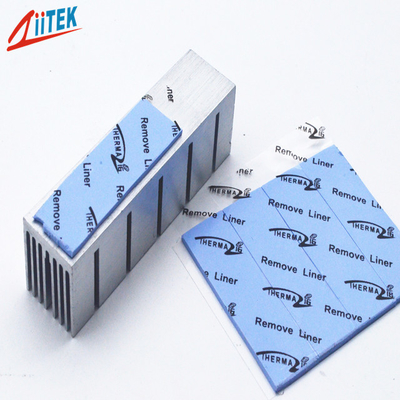

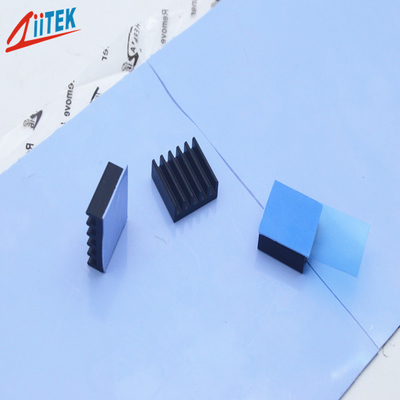

1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad
The TIF®100-12-05ES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®100-12-05ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features
> Good thermal conductive: 1.2W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> Easy release construction
> Electrically isolating
> High durability
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
| Typical Properties of TIF®100-12-05ES Series | ||
| Color | Blue | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 |
| Specific Gravity | 2.0 g/cc | ASTM D297 |
| Hardness | 12±5 Shore 00 | ASTM 2240 |
| Operating Temp | -40 ~ 160℃ | ****** |
| Dielectric Breakdown Voltage | ≥5500 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 4.5 MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X1012 Ohm-cm | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Outgassing(TML) | 0.40% | ASTM E595 |
| Thermal conductivity | 1.2W/m-K | ASTM D5470 |
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
