Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Phân cô bằng điện ROHS Tuân thủ Tuân thủ Silicone Silicon Tuân thủ 1,5W/MK để theo dõi hộp điện | Từ khóa: | Silicone Thermal Pad |
|---|---|---|---|
| Ứng dụng: | Giám sát hộp điện | Đánh giá ngọn lửa: | UL 94 V-0 |
| Continuos sử dụng temp: | -45 đến 200oC | Xây dựng & Phân bón: | Chất đàn hồi silicon đầy gốm |
| Độ cứng: | 45 Bờ 00 | Hằng số điện môi: | 4,5 MHz |
| Vật mẫu: | Mẫu miễn phí | Độ dẫn nhiệt（w/mk）: | 1,5W/mk |

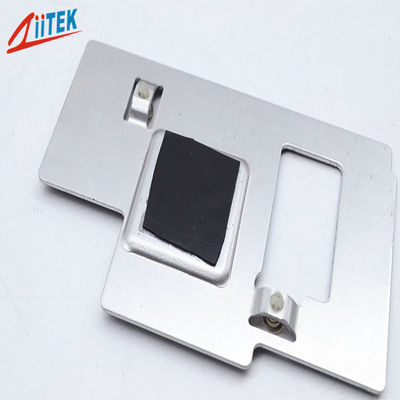

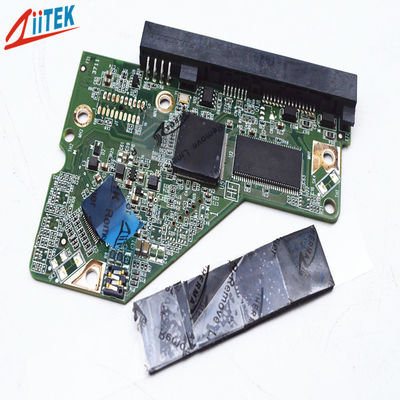

Electrically Isolating RoHS Compliant Premium Soft 1.5W/MK Silicone Thermal Pad For Monitoring The Power Box
The TIF®100-01S use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features:
> Good thermal conductive :1.5W/mK
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LCD TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> CPU
> Memory Modules
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| Typical Properties of TIF®100-01S Series | ||
| Property | Value | Test method |
| Color | Black | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 |
| Specific Gravity | 2.3 g/cc | ASTM D792 |
| Hardness | 45 Shore 00 | ASTM 2240 |
| Operating Temp | -40 ~ 200℃ | ****** |
| Dielectric Breakdown Voltage | ≥5500 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 4.5 MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X1012 Ohm-cm | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Outgassing(TML) | 0.35% | ASTM E595 |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Thicknesses: 0.020"(0.5mm)~0.200"(5.0mm)
Product Sizes: 8" x 16"(203mm x 406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection.The storage condition is low temperature anddry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Independent R&D team
