Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Độ bền cao nhiệt độ cao Silicon Silicon Pad cho pin | Từ khóa: | Bộ cách điện silicon nhiệt |
|---|---|---|---|
| Độ dẫn nhiệt: | 1,5W/mK | Nhiệt độ sử dụng liên tục: | -45 đến 200oC |
| Độ dày: | 0,020"(0,5mm)~0,200"(5,0mm) | Màu sắc: | Xám |
| Ứng dụng: | Ắc quy | Độ cứng: | 35 bờ 00 |

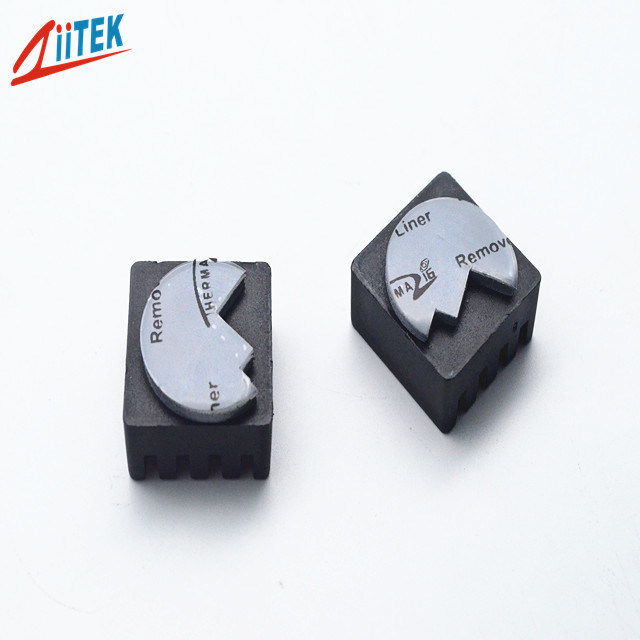

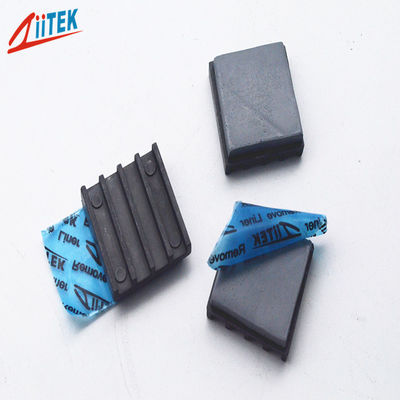

High-Strength High-Temperature Resistant Thermal Silicon Insulator Pad For Battery
The TIF®100-02E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
| Typical Properties of TIF®100-02E Series | |||
| Property | Value | Test method | |
| Color | Gray | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | 0.020"(0.5mm)~0.200"(0.50mm) | ASTM D374 | |
| Specific Gravity | 2.3g/cc | ASTM D297 | |
| Hardness | 35 Shore 00 | ASTM 2240 | |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 4.7 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
