Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm cùng loại: | Vật liệu đệm khoảng cách bằng silicone Vật liệu GAP PAD nhiệt mềm cho bộ xử lý AI Máy chủ AI Viễn th | Ứng dụng: | Bộ xử lý AI, Máy chủ AI, Nhà thông minh, Viễn thông |
|---|---|---|---|
| Nhiệt độ hoạt động đề xuất: | -40 đến 200℃ | Độ dẫn nhiệt: | 5.0W/m-K |
| độ cứng: | 65/20 Bờ 00 | Tỉ trọng: | 3,2g/cm³ |
| Màu sắc: | màu xám đen | độ dày: | 0,010 "(0,25mm) ~ 0,200" (5,0mm) |
| Từ khóa: | đệm khe hở nhiệt |

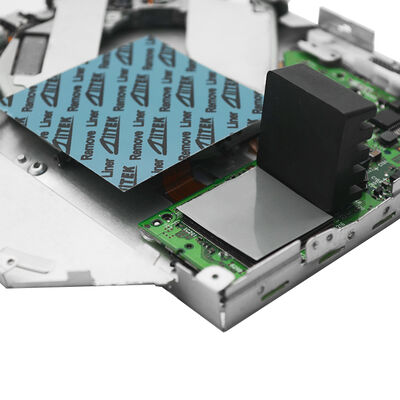

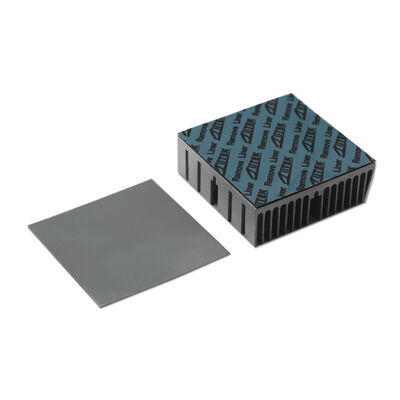

Silicone-Based Gap Pad Filler Soft Thermal GAP PAD Materials For AI Processors AI Servers Smart Home Telecom
The TIF®100-50-11US Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines higt thermal conductivity with a near-fluid ultimate softness, ensuring perfect filing of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance, and providing superior thermal solutions and physical protection for the most precise and higt heat flux electronic components.
Features
> Good thermal conductive: 5.0W/mK
> Moldability for complex parts
> Easy release construction
> Electrically isolating
> High durability
Applications
Electronic Components – 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robotics, Servers, Smart Home, Telecom, etc.
| Typical Properties of TIF®100-50-11US Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @ 1MHz | 6.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 5.0W/m-K | ASTM D5470 | |
| 5.0W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is availablein custom shapes and various forms.
For other thicknesses or more information, please contact us.
